Rated 3000W Photovoltaic Off Grid System 24V 48V Solar Pure Sine Wave Inverter

Product Categories

Hunan Sanyi Energy Technolody limited

Contact Now

Rated 3000W Photovoltaic Off Grid System 24V 48V Solar Pure Sine Wave Inverter

Name: Rated 3000W Photovoltaic Off Grid System 24V 48V Solar Pure Sine Wave Inverter
Brand: Sanyi
Price: 1 USD

Buy cheap Rated 3000W Photovoltaic Off Grid System 24V 48V Solar Pure Sine Wave Inverter product

Brand Name : Sanyi

Model Number : Sanyi-2440

Certification : CE

Place of Origin : China

MOQ : 1 unit

Price : negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 5000 unit per month

Delivery Time : 7-15working days

Packaging Details : Wooden case and Carton case

Scope of application : photovoltaic

Input Voltage Waveform : Pure Sine Wave(utility or generator)

Maximum Conversion Efficiency(Dc/Ac) : 97%

Name : Photovoltaic Off Grid System

Contact Now

Rated 3000W photovoltaic off-grid system 24V/48V solar power frequency pure sine wave inverter

Specifications:

Name	Pure sine wave power inverter
Input voltage	DC 12V/24V/48V/60V for your choice
Output voltage	AC 220V
Output frequency	60Hz
Peaks Power	4000W(Maximum Active Surge Rating which is less than 1 second)
Rated power	2000W
Maximum AC Current per socket	8.33Ampere
Output Waveform	True/pure sine wave (<3% THD)
Efficiency	90≥%
No Load Current Draw (DC side)	<0.6 A

Featurs:

1. Low loss, high efficiency, toroidal transformer, pure sine wave output;

2. Support internal and external dual LCD screen display, optional external screen can be turned on and off with one button, simple and fast operation;

3. Special microprocessing chip design, the device computing speed is faster and more stable;

4. LCD display, real-time viewing of setting parameters and operating conditions;

5. The mains charging current is adjustable from 0~30A, and the user's battery capacity configuration is more flexible;

6. With three working modes adjustable (mains priority, inverter priority, energy-saving adjustable)

7. With stable voltage and frequency output, perfect all-round automatic protection function;

8. Optional built-in PWM or MPPT solar controller;

9. Added fault code query function to facilitate users to monitor the operating status in real time;

10. Support diesel (gas) oil generator, which can be applied to work in harsh power environment;

11. Support RS485 communication interface/mobile APP (optional).

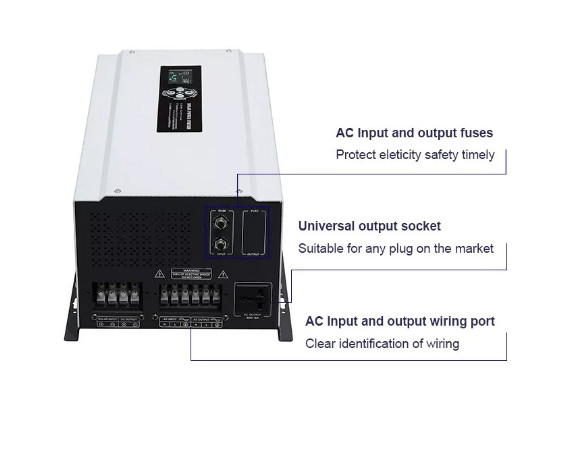

Product Detail:

Rated 3000W Photovoltaic Off Grid System 24V 48V Solar Pure Sine Wave Inverter

Application:

Rated 3000W Photovoltaic Off Grid System 24V 48V Solar Pure Sine Wave Inverter

FAQ:

Q1: How to choose a suitable inverter?
RE:If the load resistive load is like: lamp, you can choose a modified wave inverter. But if it is an inductive load and
Capacitive loads, we recommend using a pure sine wave inverter.

Q2: How to choose the size of the inverter?
RE:Different types of power demand loads are different. You can view the power load value to determine the size of the power inverter.

Q3: What about the Delivery time?
RE: 5 days for samples; 7-15 days for bulk orders.

Q4:What is the warranty of the inverter?
RE: 2 years warranty.
